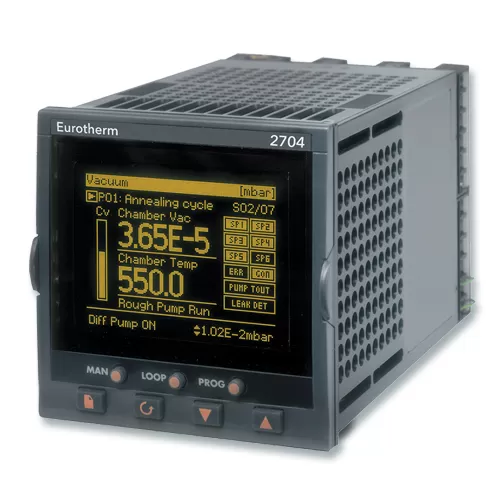

Maximize your productivity and reduce system costs with the highly accurate and stable process controller, the 2704. Its user-friendly interface includes a bright dot matrix display, offering extreme flexibility and ease of use. This highly configurable product comes with features like setpoint programming, math and logic functions, simplifying system complexity and integrating the process control and logic functions of your machine. It supports multiple input types, such as thermocouple input, Pt100 resistance thermometers, and linear input types like 0-10Vdc and 4-20mA. The 2704 is perfect for applications like semiconductors, vacuum heat treatment, and research applications.
Eurotherm 2700 Series Spec Sheet
2700 Series Multi Loop Specifications
| Description | Information |
|---|---|
| Analogue IP/OP In | 8 |
| Analogue IP/OP Out | 8 |
| Combinational Logic | 32 Operations |
| Control Algorithms | User wired, Cascade, Override, Single |
| Control loops | 3 |
| Digital Comms | DeviceNet, Ethernet, Modbus, Profibus |
| Digital IP/OP In | 44 |
| Digital IP/OP Out | 43 |
| Maths Equation | 32 Calculations |
| PC Configuration | Graphical wiring |
| Special Features | Vacuum, Carbon Potential, Humidity, Melt Pressure |
| Timers/Counters/Totals | 4 / 0 / 4 |
| Panel size (DIN) | 1/4 |
| Input Type | mA, mV, RTD, TC, Volts |
| PV Accuracy | <0.1% |
| IP Rating | IP65 |
| Display Type | Dot Matrix |
| Control Types | On/Off, PID, VP |
| Alarm Types | Dev, Event, Heater fail, Hi, Lo |
| Supply Voltage | 24V dc/ac, 85-264V ac |
| SP Programmer | 60 Programmes, 600 Segments max |
| Real Time Clock | Day and Time |
